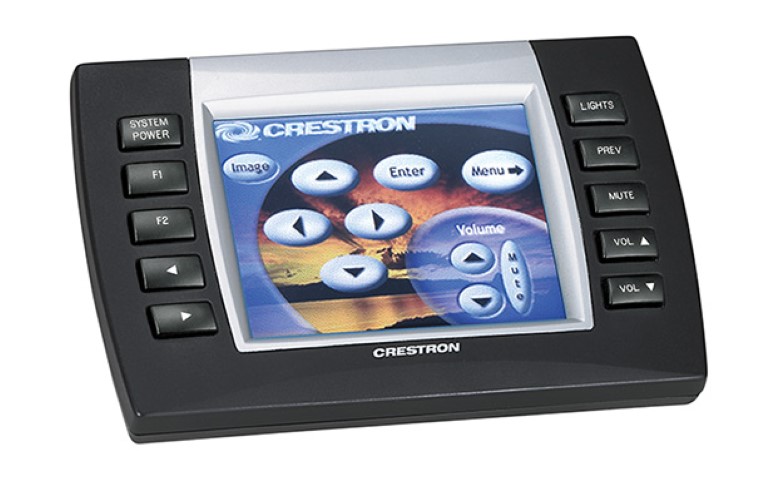

Crestron TPS-1700

SPECIFICATION

DETAILS

Power Requirements

10 Watts (0.40 Amp @ 24 VDC)

Default Net ID

03

Default Standby Timeout

10 minutes

Signal Join Maximums

4K (digital), 4K (analog), 999 (serial)

Control System Update Files 1 2-Series Control System CEN/CN-TVAV

CNMSX-AV/Pro CNRACKX/-DP

CNMS, CNRACK, CNLCOMP

ST-CP

Version C2-2004.CUZ or later2 Version 5.13.12V.UPZ or later3, 4 Version 5.12.63X.UPZ or later3, 4 Version 5.10.11W.UPZ or later3, 4 Version 3.18.09m, l, c or later5 Version 4.02.04S.UPZ or later3

Acceptable File Extensions6 VT Pro-e

.vtp

.vtz

Firmware

.csf

projectname.vtp (source file)

projectname.vtz (compiled file)

TPS-1700xxxxxx.csf (panel firmware)

Memory

4 MB flash memory (3.5 Mbytes available for user programming)

8 MB SDRAM for firmware storage

Touchscreen Dimensions

Height: 3.50 in (8.89 cm)

Width: 4.60 in (11.68 cm)

Diagonal: 5.70 in (14.48 cm)

Touchscreen Resolution

320 x 240 pixels, 64K colors (16-bit)

Touchscreen Viewing Angles

±65° for X dir, +65°/-40° for Y dir

Touchscreen LCD

Active matrix

Touchscreen Illumination

Backlit fluorescent

Touchscreen Composition

Resistive Membrane

Operating Temperature

50° to 113°F (10° to 45°C)

Humidity

10% to 90% RH (non-condensing)

Overall Dimensions

Width: 8.75 in (22.22 cm)

Height: 3.85 in (9.78 cm)

Depth: 5.51 in (14.00 cm)

Weight

1.85 lb (0.84 kg)
