| Firewall Policies |
200,000 |
| Gateway-to-Gateway IPsec VPN Tunnels |
40,000 |
| Client-to-Gateway IPsec VPN Tunnels |
64,000 |
| SSL-VPN Throughput |
10 Gbps |
| IPS Throughput (HTTP / Enterprise Mix) |
75 / 21 Gbps |
| SSL Inspection Throughput |
23 Gbps |
| NGFW Throughput |
17 Gbps |
| Threat Protection Throughput |
12 Gbps |
| CAPWAP Throughput |
22 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 500 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
4,096 / 1,024 |
| Maximum Number of FortiTokens |
5,000 |
| Maximum Number of Registered FortiClients |
20,000 |

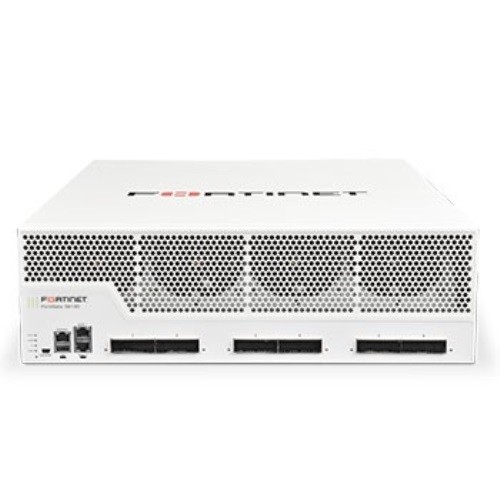

| Model |
FG-3800D and 3800D-DC |
| USB Ports |
1 |
| Concurrent Sessions (TCP) |
95 Million |
| Concurrent SSL-VPN Users (Recommended Maximum) |
30,000 |
| Application Control Throughput |
44 Gbps |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| Height x Width x Length (mm) |
133 x 442 x 673 |
| Weight |
23.0 kg |
| Form Factor |
3 RU |
| Power Consumption (Average / Maximum) |
536 / 768 W |
| Heat Dissipation |
2621 BTU/h |
| Operating Temperature |
0–40°C |
| Storage Temperature |
-35–70°C |
| Humidity |
20–90% non-condensing |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
| Internal Storage |
960 GB |
| Console Port |
1 |
| Included Transceivers |
2x SFP+ (SR 10 GE) |
| Firewall Latency (64 byte, UDP) |
5 µs |
| Firewall Throughput (Packet per Second) |
262.5 Mpps |
| IPsec VPN Throughput (512 byte) |
135 Gbps |
| AC Power Supply |
100–240V AC, 60–50 Hz |
| Current (Maximum) |
12A@100V, 5A@240V |
| Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Gateway-to-Gateway IPSec VPN Tunnels |
|
| Client-to-Gateway IPSec VPN Tunnels |
|
| 100 GE CFP2 Slots |
4 |
| 40 GE QSFP+ Slots |
4 |
| 10 GE SFP+ Slots |
8 (supports GE SFP as well) |
| GE RJ45 Management Ports |
2 |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) |
320 / 300 / 150 Gbps |
| New Sessions/Sec (TCP) |
480,000 |
| DC |
48–72V DC |
| Redundant Power Supplies |
Yes, Hot Swappable |
| Identifier |
FortiGate |
| Семейство продуктов |
FG-1000 to FG-4000 |
| Продукт |
FortiGate-3000 |
| Тип продукта |
HWvt |
